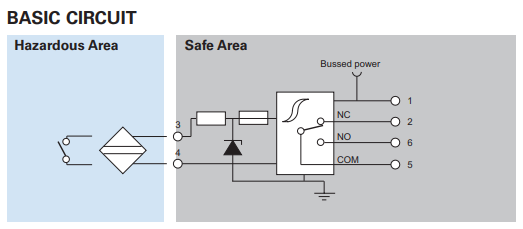

MTL7741 proximity sensor or switch input and relay output The MTL7741 is a single channel switch/prox input barrier with changeover relay contacts acting as the safe area interface. Relay contacts provide a universal interface capable of switching a wide range of signals including ac, low level and high level voltages. Phase reversal is achieved by connecting the normally open or normally closed contacts as required. The power bus terminal may be used to connect the module to a power source.

　　ADDITIONAL SPECIFICATION

　　Safety description

　　10V 19mA

　　Supply voltage

　　22.9 to 30V dc with respect to earth

　　Input characteristics

　　Relay energised if input >2.1mA(<2kΩ)

　　Relay de-energised if input <1.2mA(>10kΩ)

　　Relay Contacts

　　33V ac 0.5A. Resistive

　　30V dc, 1A. Resistive

　　Supply current

　　26mA maximum @ 24V

　　Response time

　　<10ms
