SCHMERSAL Group has introduced a brand-new HDS series of switches tailored for the heavy industry. This modular product line, integrating multiple functions, finds extensive applications across various heavy industries. Based on a standardized housing concept, two housing options are available: high-strength plastic (thermoset plastic) and cast iron. The plastic housing, renowned for its corrosion resistance, is ideally suited for port logistics, loading and unloading operations, as well as the processing of fertilizers, minerals, and phosphates in the agricultural industry, among many other applications. The robust cast iron version, on the other hand, excels in mining, bulk material transportation, and refining industries.

　　Functionally, this series can be categorized into two types: emergency stop switches, designed as emergency pull-cord switches, and position monitoring switches. The basic switch bodies of the position monitoring switches can be flexibly combined with a range of actuators. Typical application areas encompass emergency stop shutdowns, conveyor belt deviation monitoring in bulk material handling, end position monitoring in the steel industry, and material level monitoring in silos. With protection ratings up to IP66 and IP67, these switches can withstand extreme environmental conditions.

　　All basic switch bodies can optionally be connected to the Dupline installation bus or AS-I-Safety-at-Work bus for quick and convenient networking, series connection of switches, and improved transmission of diagnostic data. The central terminal wiring featuring CAGE and CLAMP technology also aids in reducing installation time.

　　All switchgear meets the requirements for safety switches. Furthermore, the HDS platform products have obtained a series of international certifications, including CE (Europe), UL (USA), CCC (China), EAC (Russia), Ex, IECEx (explosion protection, global), and INMETRO (Brazil, South America).

　　The modular HDS switch platform offers flexible usage across a wide range of applications. Additionally, its global certifications enable worldwide deployment.

　　SCHMERSAL's Flexible and Modular Switch Platform

　　The all-new generation of SCHMERSAL HDS switches, based on a standardized housing concept, offers a choice between cast iron or high-strength plastic (thermoset plastic) housings. The plastic version, with its corrosion resistance, is suitable for port logistics, fertilizer manufacturing, and phosphate-related agrochemical industries. The sturdy gray cast iron version is ideal for open-pit mining, bulk cargo shipping, and material handling industries. Functionally, it can be used for emergency stop and most position monitoring applications. Depending on the specific application environment, various actuator kits are available to monitor position information. For better remote monitoring, all models can be optionally equipped with dual-line fieldbus solutions or additional indicator lights. The products have passed a series of international certifications, meeting the requirements for global product sales.

　　SCHMERSAL HDS Application Scenarios

　　The flexible and modular fourth-generation switch platform can be widely applied in various heavy industries.

　　This series of switches can be used for emergency stop functions or position monitoring of mobile machines and equipment components requiring a safety level of PL e.

　　The rugged housings with protection ratings of IP66 or IP67 ensure the normal operation of this series of switches under harsh environmental conditions.

　　Typical applications include:

　　Emergency stop for conveyors and industrial systems

　　Conveyor belt deviation monitoring

　　Position monitoring of moving parts on machines and systems

　　SCHMERSAL Heavy-Duty Switches - HDS

　　SCHMERSAL Basic Switches BS655/BS656

　　Platform-based products allowing the combination of different functional units (actuators)

　　All versions can be used as safety switches

　　Central terminal block connection reduces installation costs (2 NO contacts/2 NC contacts)

　　Suitable for various application environments with plastic or grey cast iron housings

　　Equipped with Dupline® interface for diagnostic functions with minimal wiring work

　　SCHMERSAL Basic Switches BS655/BS656 series models

　　BS655-T22

　　Order number： 153031629

　　BS655-Z22

　　Order number： 153031621

　　BS655-Z22-DN

　　Order number： 153031627

　　BS655-Z22-G024

　　Order number： 153031623

　　BS655-Z22-G115

　　Order number： 153031642

　　BS655-Z22-G230

　　Order number： 153031625

　　BS656-T22

　　Order number： 153031630

　　BS656-Z22

　　Order number： 153031622

　　BS656-Z22-DN

　　Order number： 153031628

　　BS656-Z22-G024

　　Order number： 153031624

　　BS656-Z22-G115

　　Order number： 153031643

　　EX-BS655-T22

　　Order number： 153045274

　　EX-BS655-Z22-DN-2D

　　Order number： 153038067

　　EX-I-BS655-Z22

　　Order number： 153031631

　　RS655-Z22

　　Order number： 153031612

　　RS655-Z22-DS

　　Order number： 153031618

　　RS655-Z22-G024

　　Order number： 153031614

　　RS655-Z22-G115

　　Order number： 153031644

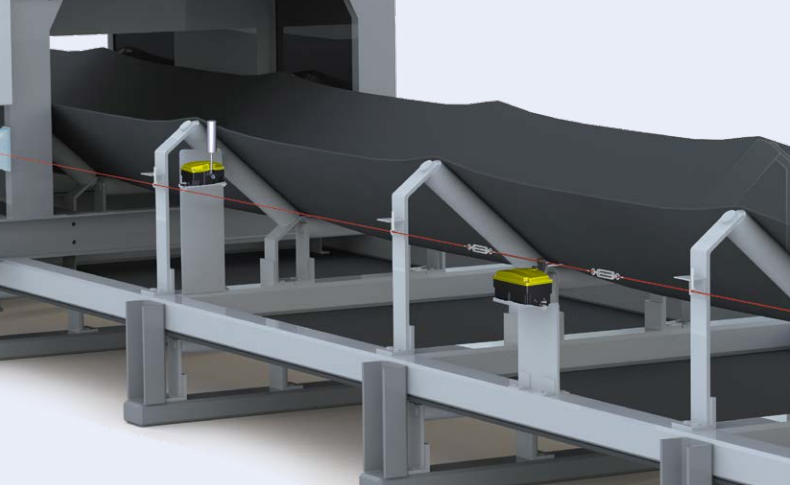

　　SCHMERSAL Emergency Stop Pull Cord Switches RS655/RS656

　　Emergency stop function can be triggered at any point on the pull cord

　　Maximum pull cord length of 2 x 100 m reduces the number of emergency stop pull cord switches, thereby minimizing costs

　　Central terminal block connection reduces installation costs

　　Suitable for various application environments with plastic or grey cast iron housings

　　Equipped with DuplineSafe® interface, including a fail-safe series connection for diagnostics with minimal wiring work

　　SCHMERSAL Emergency Stop Pull Cord Switches RS655/RS656 series models

　　RS656-Z22

　　Order number： 153031613

　　RS655-Z22-G230

　　Order number： 153031616

　　RS656-Z22-DS

　　Order number： 153031619

　　RS656-Z22-G024

　　Order number： 153031615

　　RS656-Z22-G115

　　Order number： 153031645

　　RS656-Z22-G230

　　Order number： 153031617

　　ACC-RS65X-TS

　　Order number： 103032772

　　EX-RS655-Z22-DS-2D

　　Order number： 153038066

　　EX-I-RS655-Z22

　　Order number： 153031620

　　Connection

　　SCHMERSAL HDS series switches protect the switch axis, cam, and switch contacts through sealed covers to prevent dust and dirt from affecting installation and use in harsh environments. In standard versions, both NO (normally open) and NC (normally closed) contacts are connected to the central CAGE CLAMP® terminal block. Therefore, emergency stop pull cord switches, conveyor belt deviation switches, etc., can be wired simply and efficiently. If needed, indicator lights can also be added. Safety or standard two-wire bus systems can also be used as an option for signal evaluation. In this case, only input and output signal wires need to be connected, reducing installation and wiring time. The integrated cable conduit also facilitates easy and quick installation.

　　Time and Cost Savings

　　Central terminal block connection

　　Pre-assembled switch components

　　Unused ports for signal feedback

　　Integrated DUPLINE® Network Solution

　　Fast and accurate diagnostics

　　Pre-wired NC contacts

　　Dupline® connection terminal input/output up to 4 mm
