Xin Xiaochen has the advantage of supplying MTL1145 products at favorable prices. Welcome to send inquiries and purchase requests to our email 18070781367@163.com or add our WhatsApp +86 18278761660.

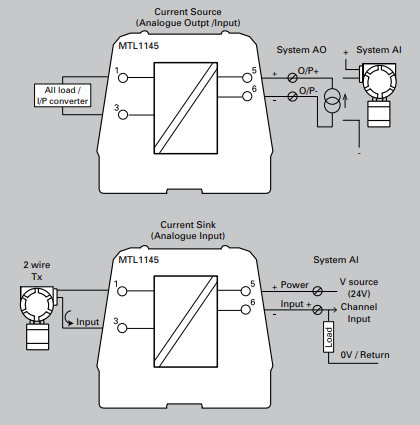

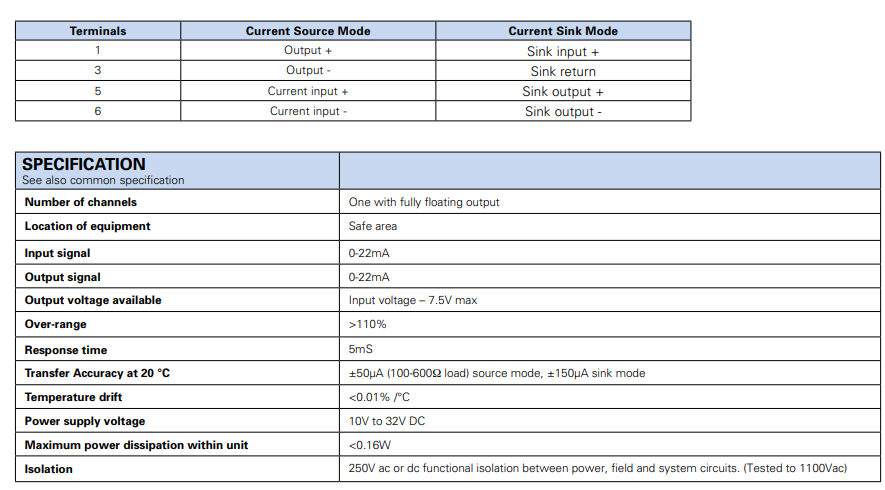

The MTL1145 is a single channel isolator which accepts a 4-20mA output source, isolates and repeats the signal. The repeated signal is loop powered from the original signal source. (Source mode). Alternatively a loop powered transmitter may be powered via the isolator from a 2 wire system input. (Sink mode)
