The MTL PCS45/PCL45USB configurator allows our converters to be configured from a standard PC running a Microsoft® Windows® operating system. It comprises PC software, provided on a CD (PCS45), and an ATEX certified interfacing link (PCL45USB). Converters can be configured from the safe area, while on-line, and configurations can be saved to disk and printed out when required. It is suitable for use with Crouse-hinds series MTL4000, MTL4500, MTL5000 and MTL5500 range.

　　Certifications and compliances

　　ATEX & IECEx approved

　　Zone 0 Group IIC outputs

　　Safe area use

　　Suitable for connection to MTL4500 & MTL5500 isolators with configuration port

　　Certified for +60°C

　　CE marked for compliance with LVD, EMC, ATEX and RoHS Directives.

　　Approvals held and approval details vary between models. Please refer to certificates for specific details.

      PCS45/PCL45USB CONFIGURATOR FOR MTL CONVERTERS

　　The PCS45/PCL45USB configurator allows MTL converters to be configured from a standard PC running a Microsoft® Windows® operating system. It comprises PC software, provided on a CD (PCS45),and an ATEX certified interfacing link (PCL45USB). Converters can be configured from the safe area, while on-line, and configurations can be saved to disk and printed out when required. It is suitable for use with MTL4000, MTL4500, MTL5000 and MTL5500 range of products.

　　SPECIFICATION

　　PCL45USB hardware

　　Location

　　Safe area

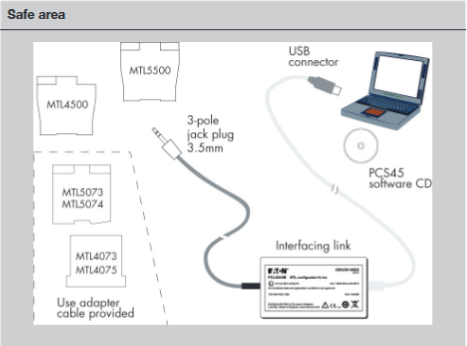

　　Connections

　　PC side: USB B(F) socket

　　Converter side: cable with 3.5mm jackplug, 3-pole for MTL4500

　　and MTL5500 range of converters. An adapter cable is provided

　　for other earlier MTL converters.

　　Cable lengths

　　Converter side (fitted): 1.5m

　　USB cable A(M) to B(M) (supplied): 2m

　　Ambient temperature limits

　　–10°C to +60°C operating

　　–20°C to +70°C storage

　　Humidity

　　5 to 95% relative humidity (non-condensing)

　　Weight

　　200g

　　PCS45 Configuration software

　　Compatible with Windows XP, Win7, Win8.

　　Consult MTL for operation with any other operating system.

　　Software medium

　　PCS45 supplied on CD

　　Updates are available at www.mtl-inst.com

　　Recommended minimum PC configuration

　　Microsoft Windows XP, Win7, Win8

　　20MB of available hard disc space

　　CD ROM drive

　　Available USB port

　　Printer (local or network）
