Xin Xiaochen has the advantage of supplying MTL1173 products at favorable prices. Welcome to send inquiries and purchase requests to our email 18070781367@163.com or add our WhatsApp +86 18278761660.
potentiometer input converter
1 channel for 3 wire
potentiometers

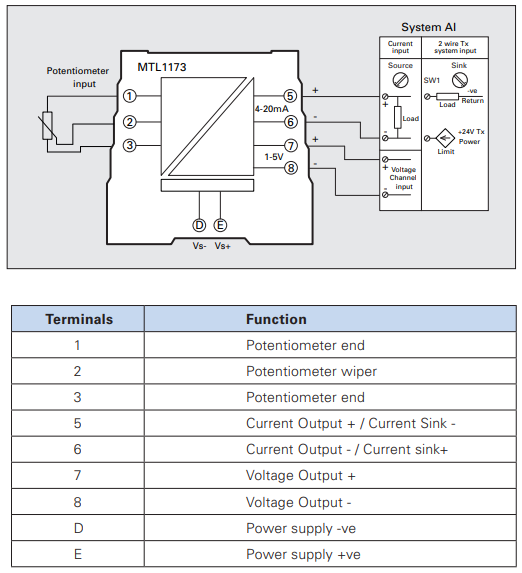

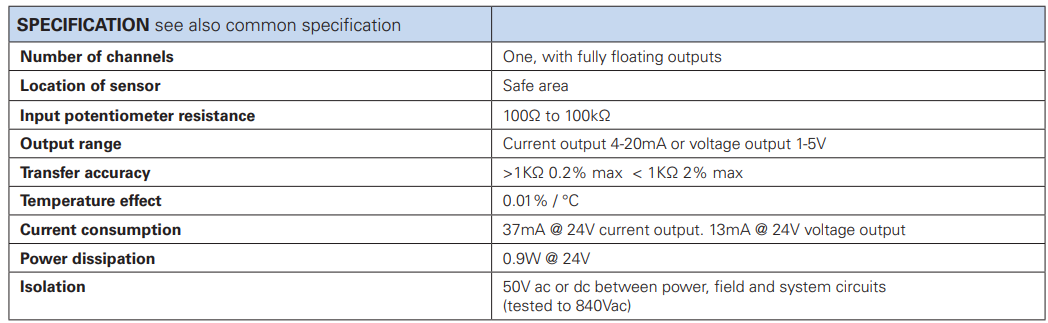

The MTL1173 is a single channel potentiometer converter with 4-20mA and 1-5V outputs Power for this module is supplied via the power bus embedded in the DIN rail. The PBUS6.2 kit must be ordered separately. 10 x 2 way power clips are provided to power 20 modules. The MTL1991 or PBUS02 is used to feed power onto the bus.
