MTL IOP range Cost effective surge protection for digital and analogue I/O

IOP32D and IOP-AC each provide surge

protection for two loops or 4 wires

• IOP32 provides surge protection for one loop

or 2 wires

• IOP HC32 provides surge protection for one

high current loop, up to 5A

• IOP-AC provides surge protections for two

120V or 240V AC loops

• Hybrid protection circuit - 20kA rated

surge current

• ATEX & FM certification for IOP32 and IOP32D

• Space saving - width per loop:

IOP32D & IOP-AC 6mm

IOP32 & IOP HC32 12mm

MTL IOP.png

　　The IOP was conceived to offer protection for both digital I/O and analogue I/O. The IOP range is the most economical surge protection solution for I/O offered by Eaton. High packing-density, high protection level and low price combine to make the IOP a value solution.

　　The IOP range is cost-effective and still retains a hybrid circuit comprising 20kA gas discharge tubes and solid state components.

　　This impressive product is designed to exhibit exceptionally low line resistance and therefore adds only a tiny voltage drop to the circuit.

　　Removable terminals are used on the IOP range for ease of installation, maintenance and for providing a loop disconnect by simply unplugging the terminals from the side of the module. Wire entry is angled to assist wiring within limited space enclosures.

　　The IOP HC32 is ideal for applications requiring up to 5A of load current. Protection of circuits to drive solenoids, relays, and actuators is now possible. The IOP AC is ideal for 120V and 240V AC circuit loops Fully automatic in operation, IOP devices react immediately to make sure that equipment is never exposed to damaging surges between lines or the lines and ground. Reacting instantaneously, the IOP redirects surges safely to ground and then resets automatically

　　The versatile design minimizes space. The IOP32D and IOP-AC models have protection for two loops in a package that is only 12mm wide. The effective space taken, per loop, is therefore only 6mm. For customers desiring single channel integrity, the IOP32 fits this need exactly. One simple manual operation clamps modules securely onto DIN rail, which automatically provides the essential high-integrity ground connection.

　　A 10 Year ‘No Fuss’ warranty is available, as standard, for the IOP, so if a correctly connected device should fail for any reason, simply return it for a free replacement.

　　‘Top-hat’ (T-section) DIN rail is generally suitable for mounting IOP modules although for adverse environments, a specially-plated version is available from Eaton’s MTL Surge Technologies.

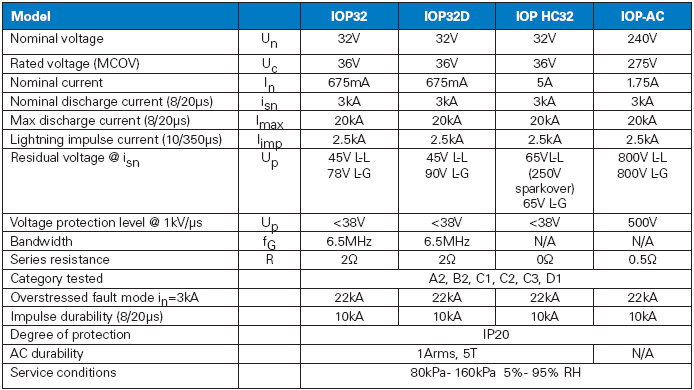

Model Number:
